Run Farther. Charge Less.

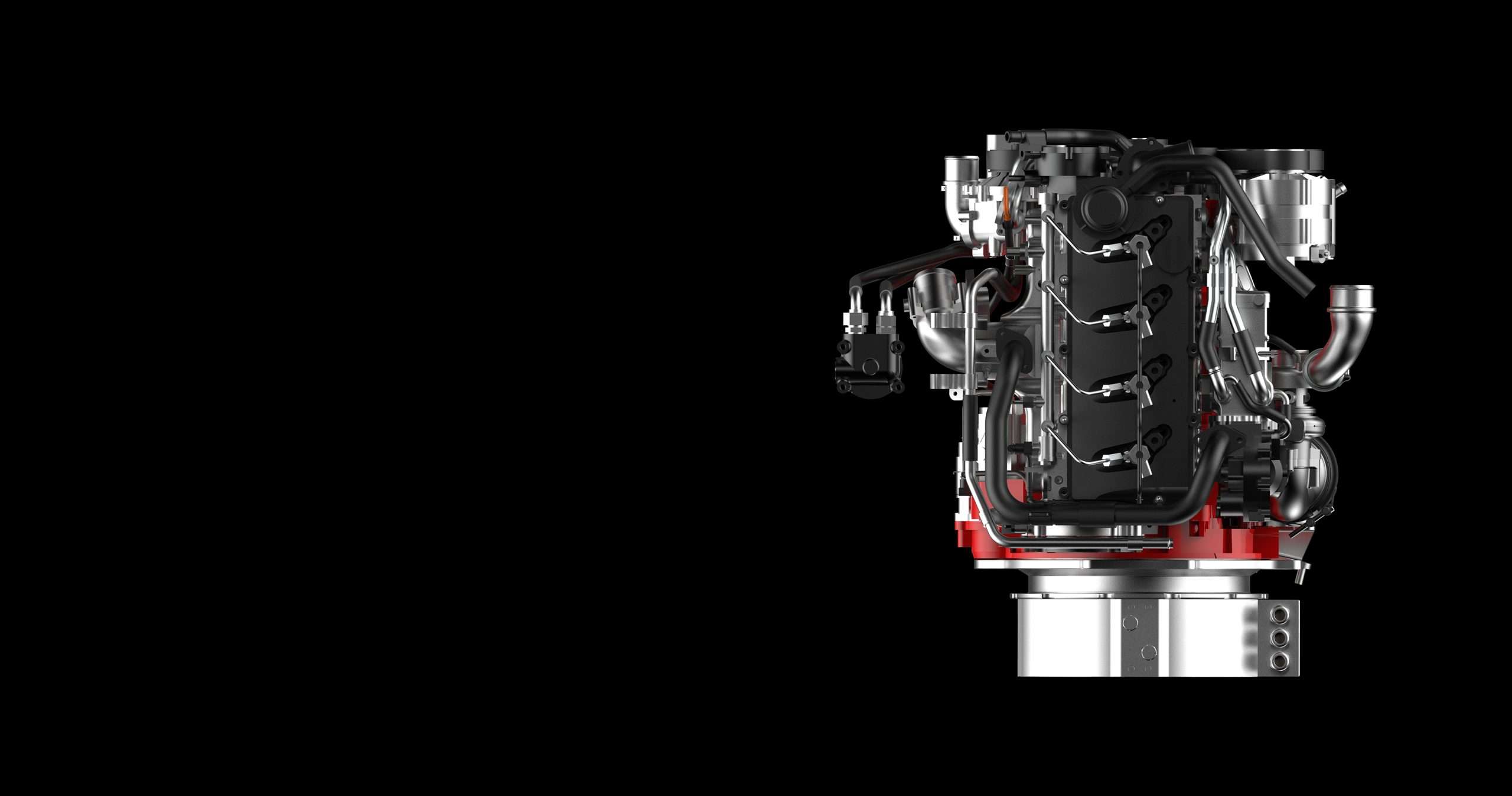

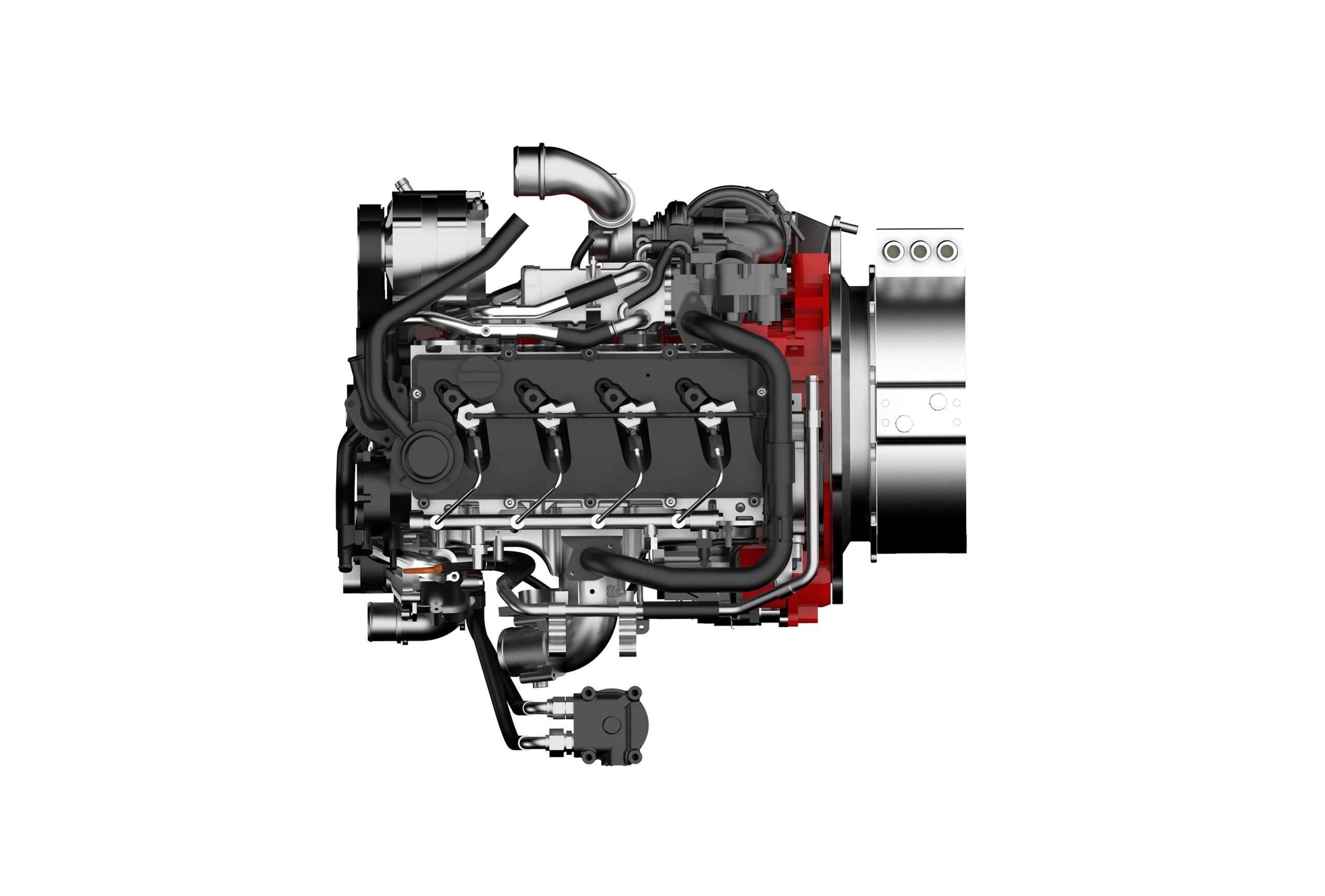

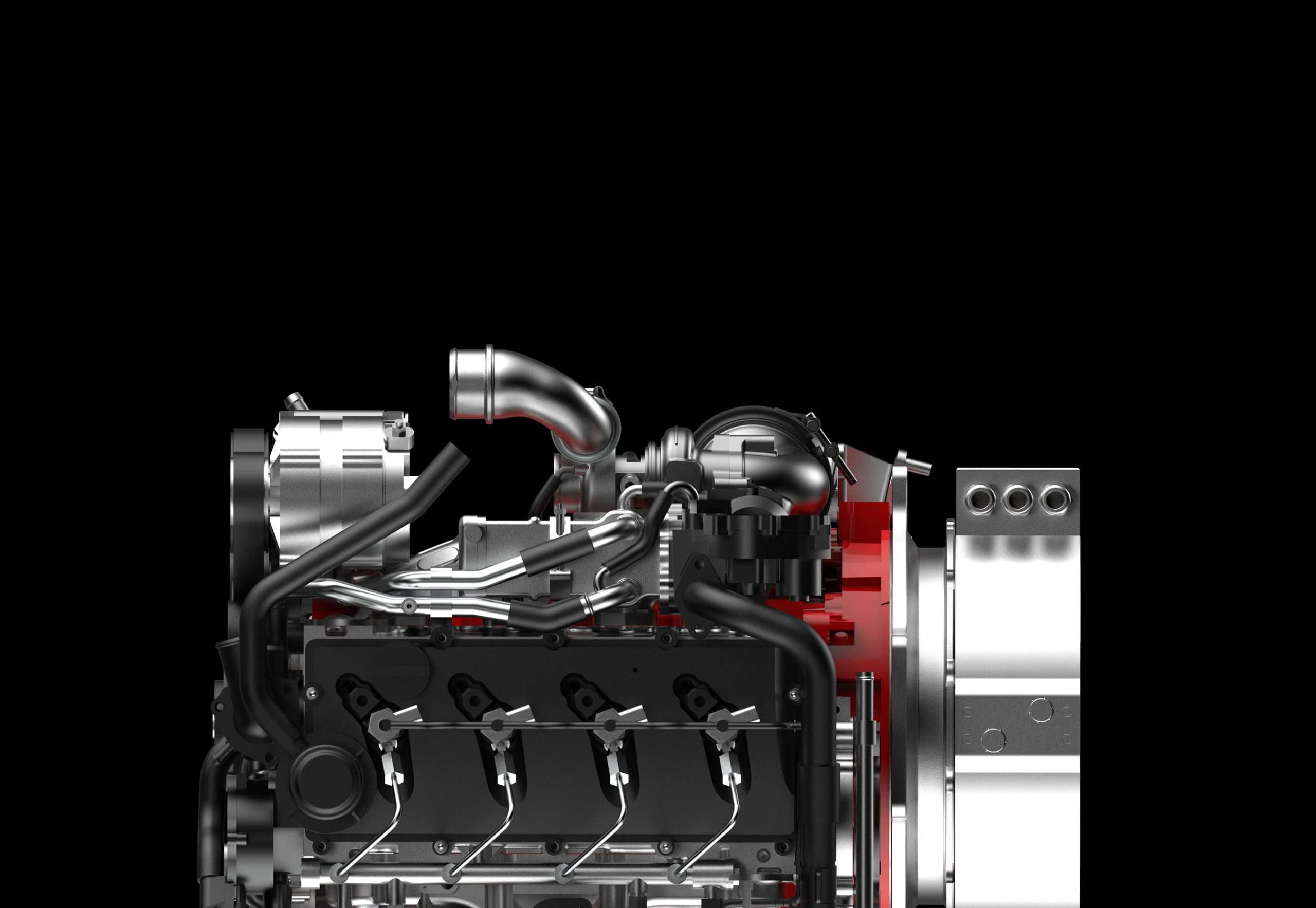

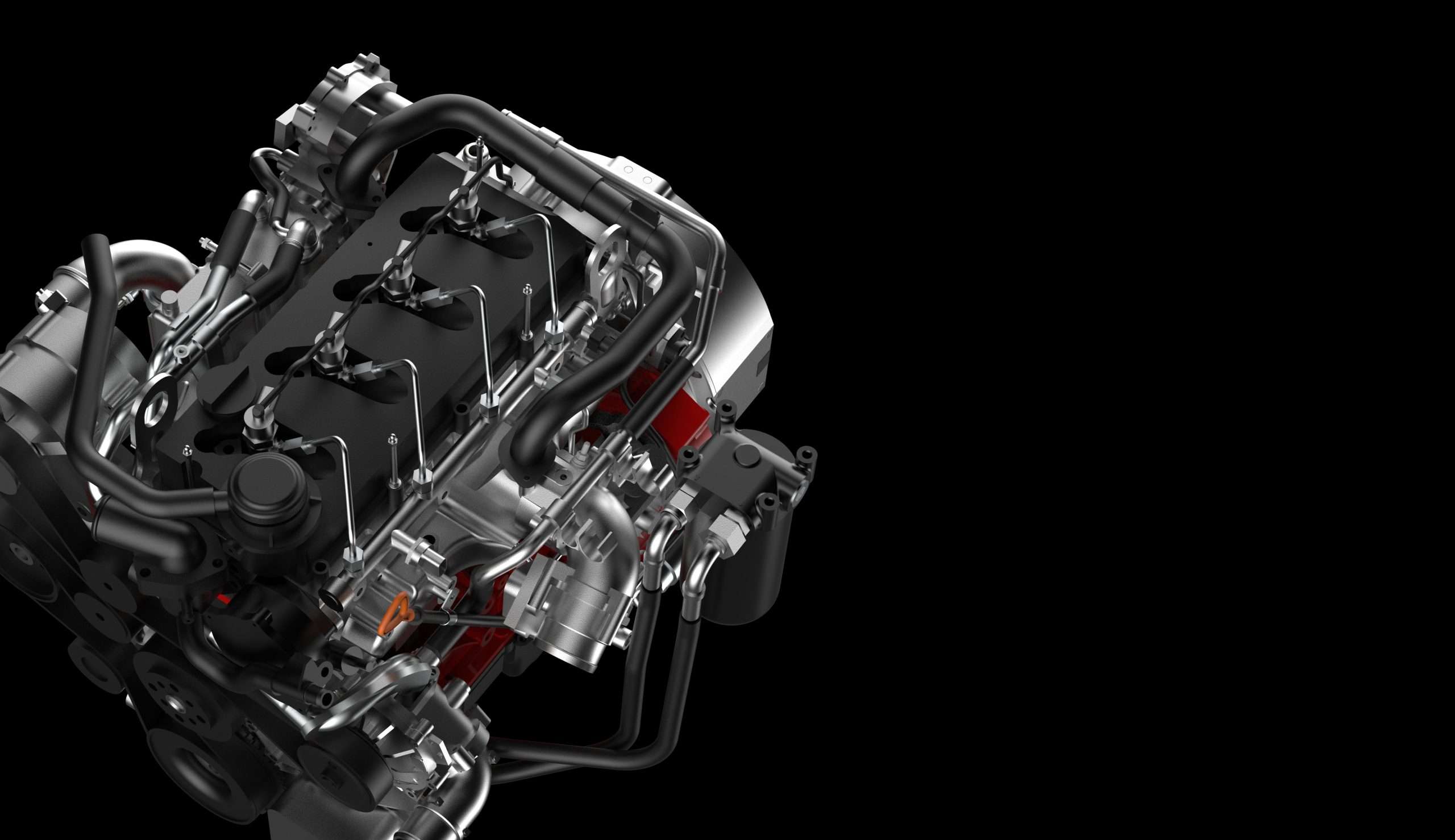

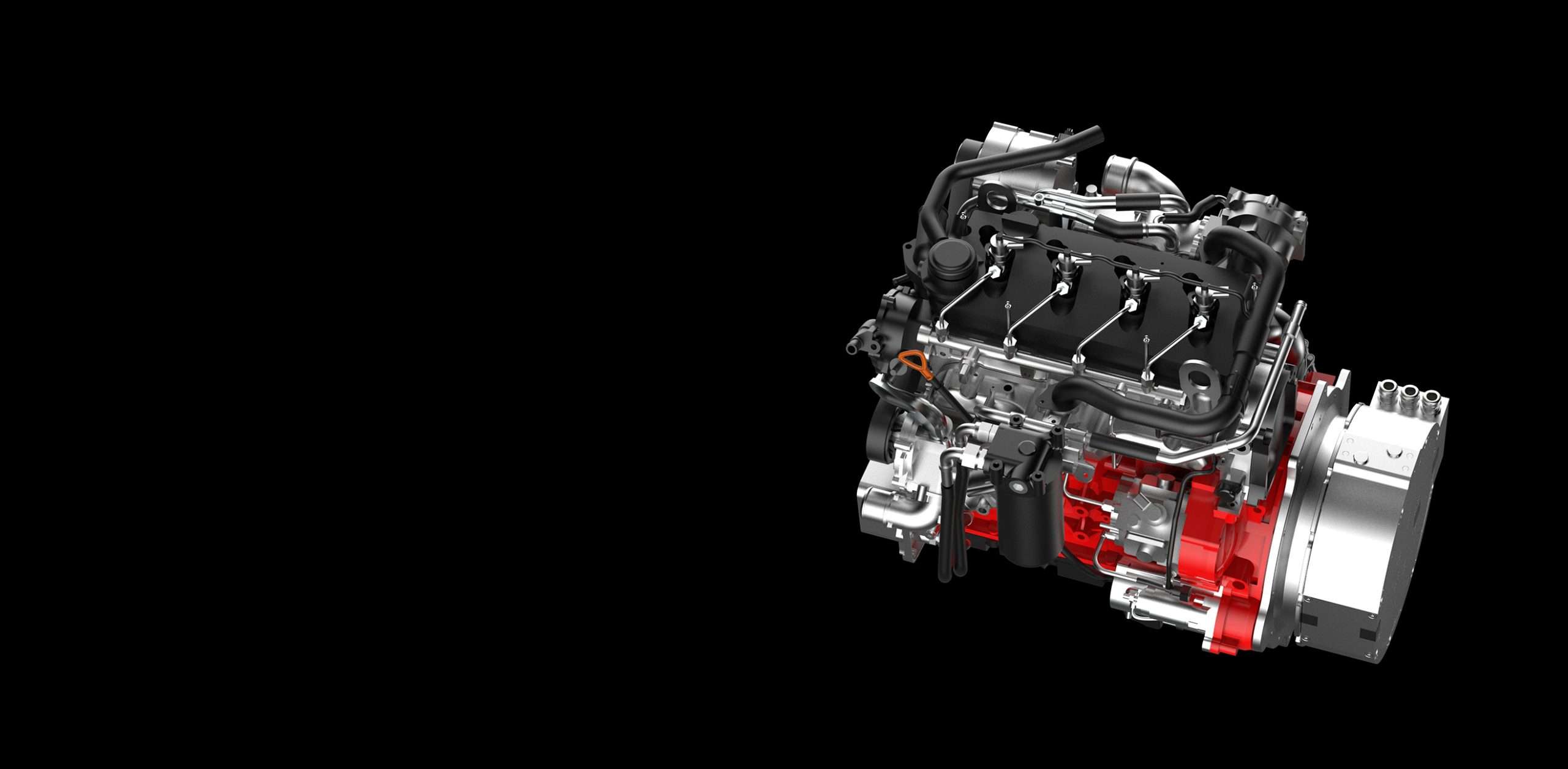

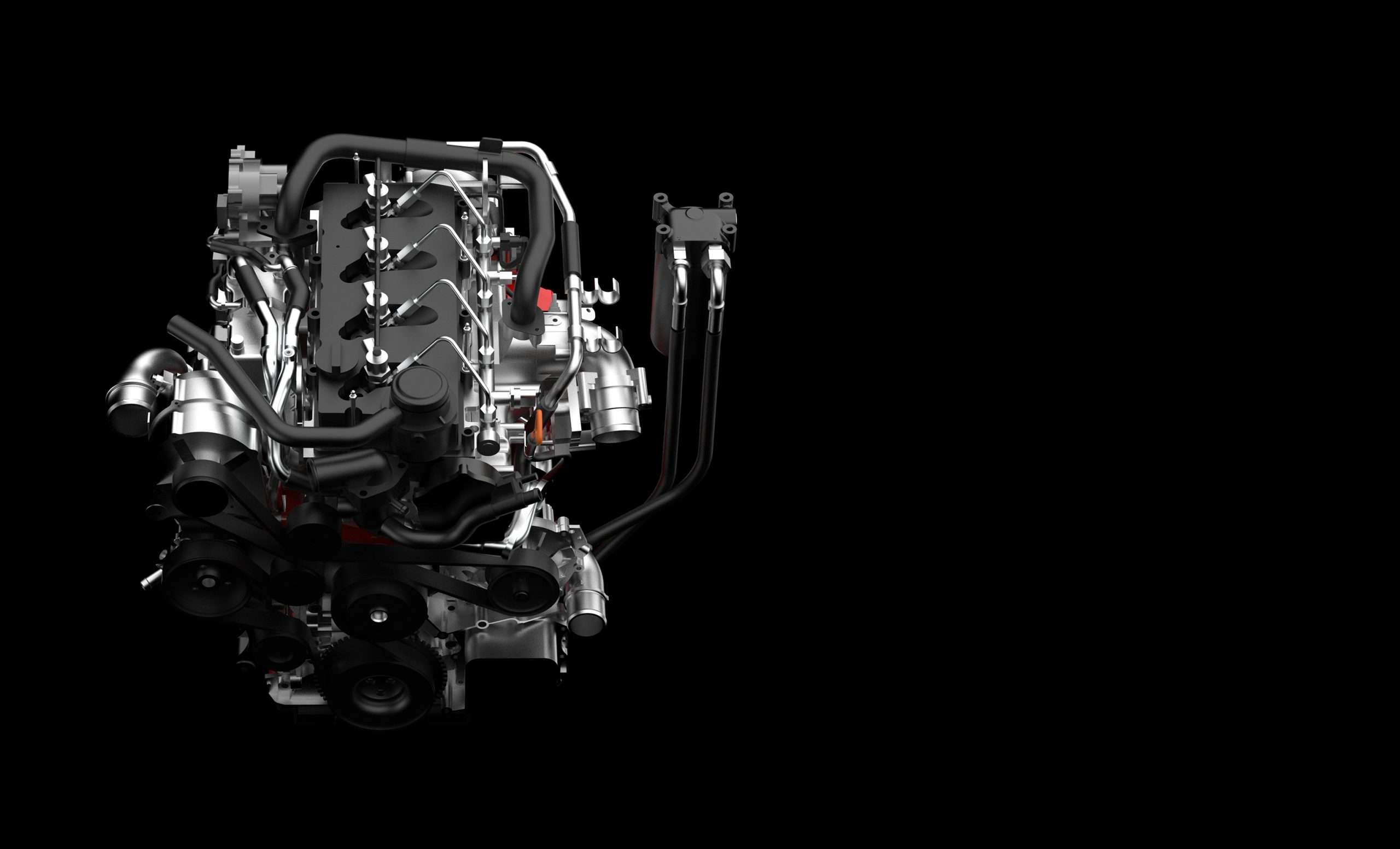

Meet the Hypercraft Pilot P50, a compact 50 kW range extender built for electric vehicles, UGVs, and mobile platforms that demand more uptime. Powered by the Hypercraft Pilot Engine (Cummins R2.8L) and paired with a high-efficiency motor/inverter, the P50 keeps your electric drive running for hours without plugging in.
Match Any High-Voltage System
Output voltages of 400V, 600V, or 800V. Allow one unit work across today’s 400V packs and tomorrow’s 800V fleets.
Smart, Simple Control
Four built-in operating modes selectable via simplified CAN:
Tune in under ten minutes with any VCU or BMS. No custom code required. Designed to minimize battery stress and reduce pack degradation.
Zero-Headache Integration
The P50 arrives with a plug-and-play HV distribution and control module that includes:
Diagnostics and safety protocols are built in with no extra engineering needed.
Pilot is ideal for a variety of applications requiring high-voltage power generation, including:
Applications:
UGVs and Robotic Platforms
Improve fuel efficiency, reduce emissions, and lower operating costs. The electric motor supports peak power demands and low-speed operations, while the diesel engine handles heavy loads efficiently. This combination enhances performance, reduces wear on components, and helps meet strict environmental regulations—making it ideal for construction, mining, and other demanding industries.
Application: Small EVs and Delivery Vans
Pilot is ideal for small EVs and delivery vans, combining an engine and generator to extend range, cut fuel use, and reduce emissions. It enables efficient operation in both electric and hybrid modes, making it a smart, sustainable choice for urban and regional transport.
Applications:
Marine Repower Projects
The fuel efficiency and power of a diesel engine with the quiet, clean operation of electric motors. This setup reduces fuel consumption and emissions, offers quieter cruising, and provides greater flexibility and reliability. It’s especially useful for meeting environmental regulations and enhancing onboard comfort.
Applications:
Mobile Workshops and First-Response Units
Efficient, flexible, and cleaner energy. By combining a diesel engine with an electric system, they reduce fuel consumption, lower emissions, and provide quieter operation. They’re ideal for off-grid, remote, or emergency use where reliable and sustainable power is essential.
Applications:

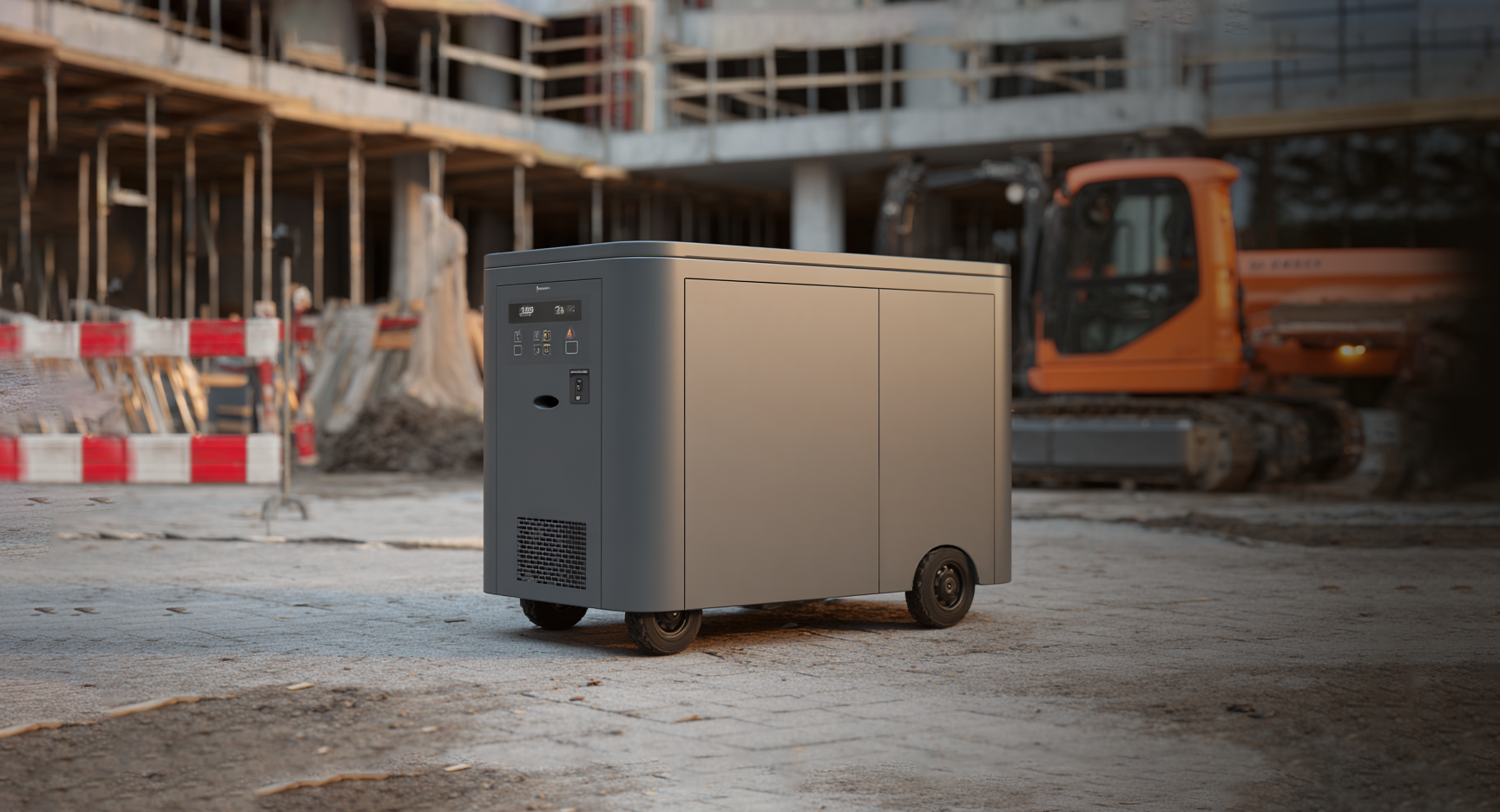

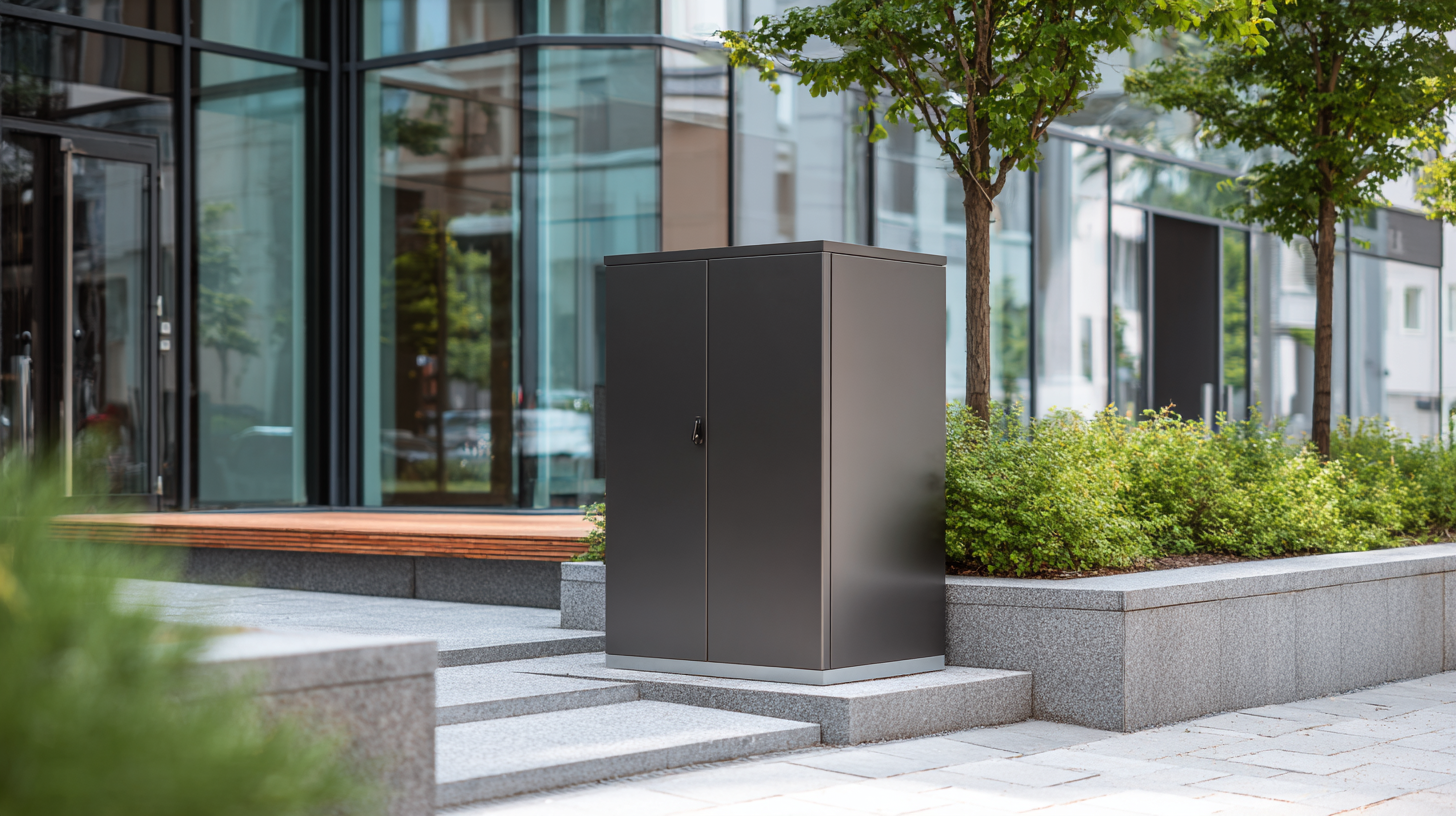

Micro-Grid and Remote Power Nodes
They combine the reliability of diesel engines with the efficiency and low-emission benefits of electric power. During low-demand periods, the system can run on electricity to save fuel and reduce noise, while the diesel engine can quickly provide full power during outages or high-load situations. This results in lower operating costs, improved fuel economy, and greater environmental sustainability—making hybrid systems a smart, dependable solution for backup power.
Built for Dual Duty
Turn any vehicle into a clean 50 kW generator.
Power tools, field sites, mobile workshops, or remote bases without needing a second genset.

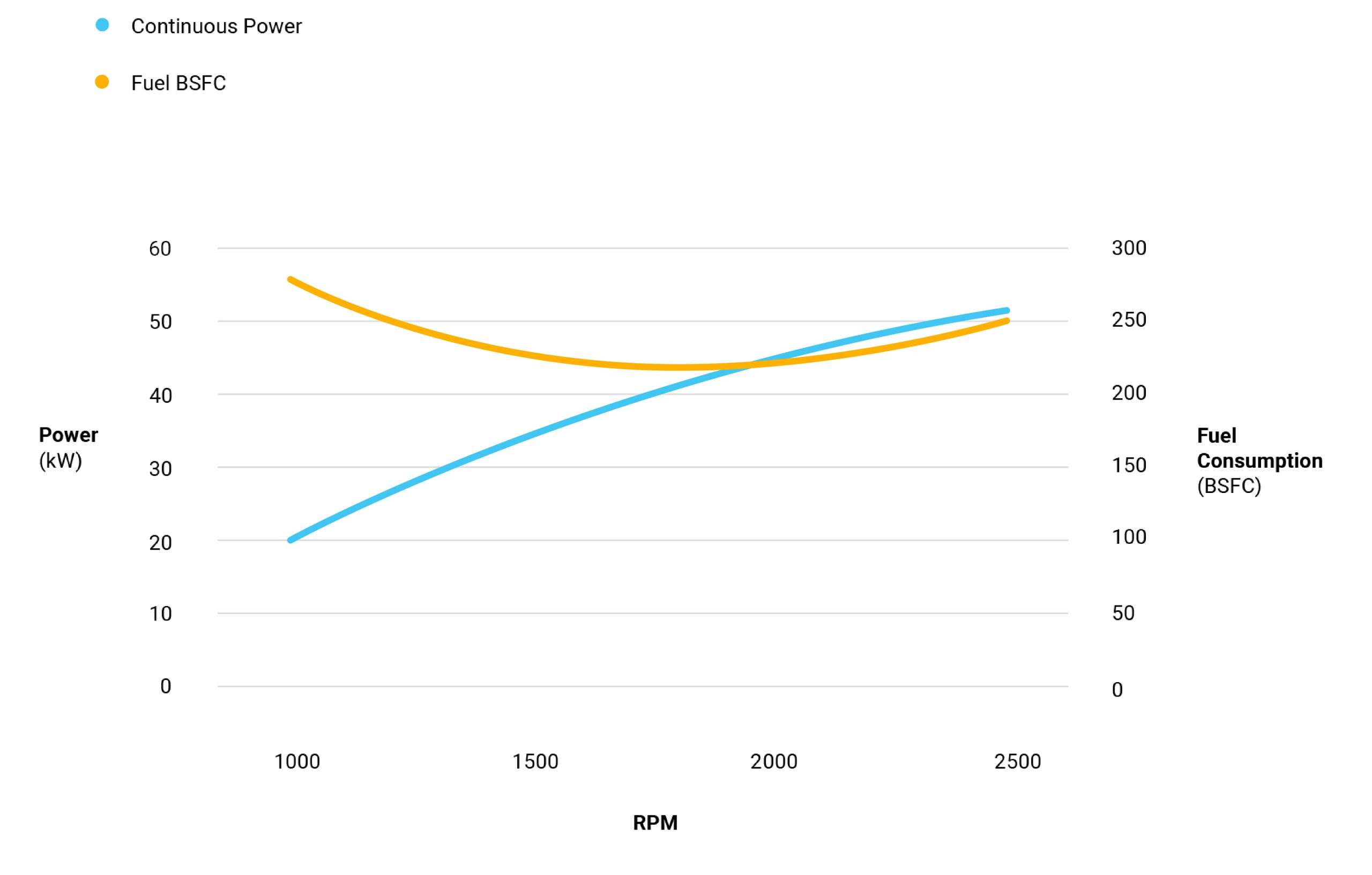

Performance Data
Optimal fuel efficiency of 224 g/kWh at 1950RPM, with optimal continuous power of 51kW at 2500 RPM.
Technical Specifications
Component
Dimensions
Fuel Type
Cooling System
Fuel Efficiency
Power Range
Specifications

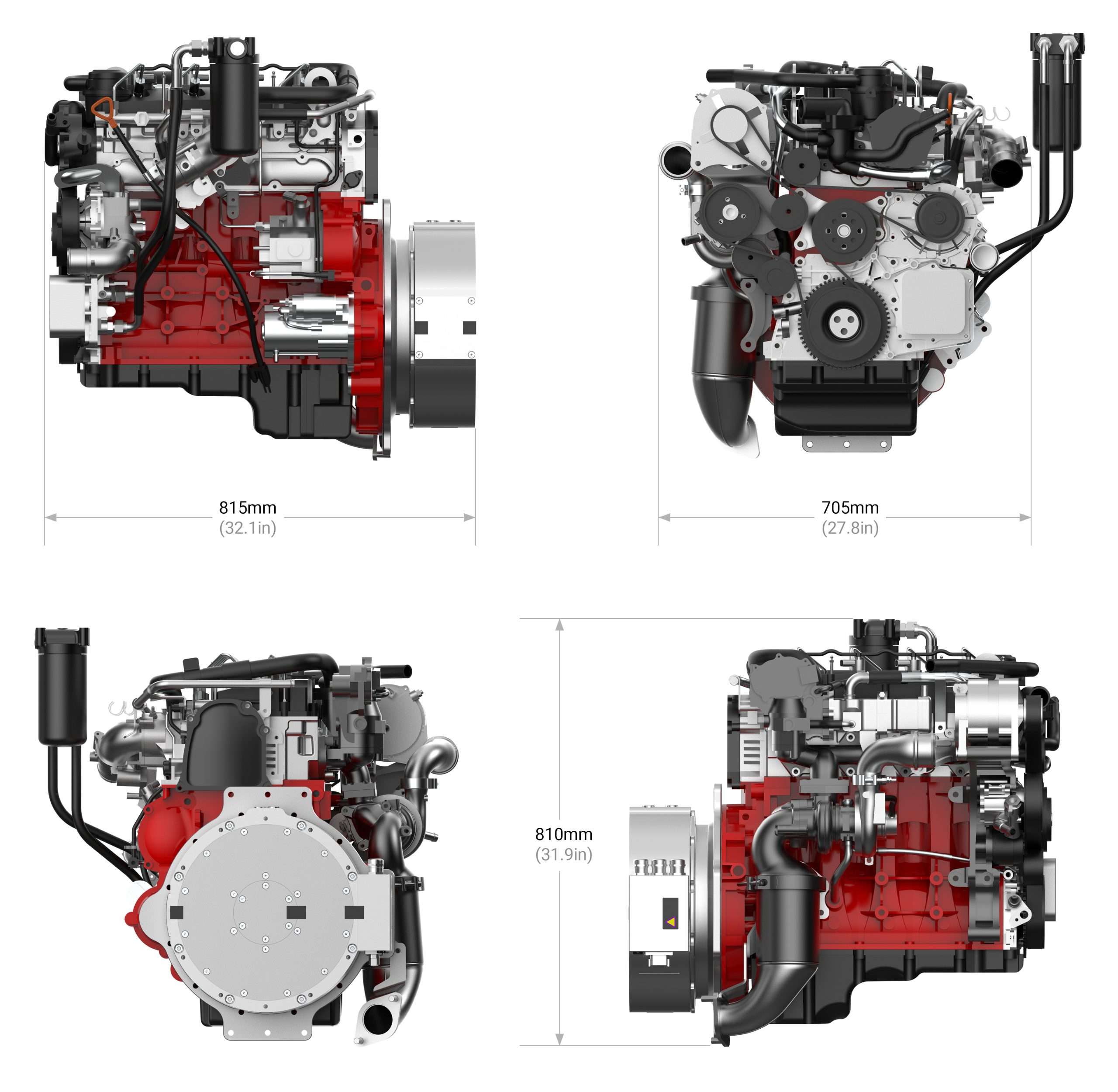

815 x 705 x 810mm (32.1 x 27.8 x 31.9in)
Diesel
Liquid-cooled
Optimal fuel consumption of 224 g/kWh at 1950 RPM
Continuous 51 kW (2500 RPM), Peak 91 kW
The future of integrated power for the most demanding operations.
Pilot offers exceptional efficiency, durability, and flexibility across diverse operational environments.
